Roland GS-500 Guitar Synthesizer Controller

Click to enlarge.

Versions: Latching/Non-Latching 24-pin Connectors.

The early GR-500s are generally seen with the pin-type connectors, and they use the C-24B 24-pin cables with pin-type ends more commonly identified with the Ibanez 24-pin synths and the Korg Z3, though the Roland SCC-700 used the same connectors as well.

The later GR-500s switched to the locking ring connectors, the C-24D. These are the much more familiar locking ring cables sold with most of the GR-100, GR-300, and GR-700 systems.

Early 24-pin connector (top), later connector (bottom).

The Infinite Sustain System

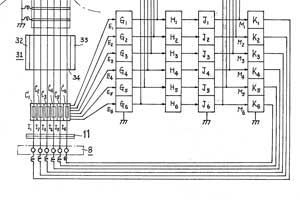

Sustainer Patent Diagram. Click to enlarge.

One of the most interesting features of the GS-500 is the unique infinite sustain system. This system works for both the synthesizer and conventional guitar output.

How does it work? Look online to find the patent application by Roland dated June 16, 1977. The inventor listed on the patent application is Ikutaro Kakehashi,the founder of Roland Electronics. The patent application US4137811A goes in to great detail on how the GR/GS-500 works, but here is a quick summary of the sustain system.

Two powerful magnets of opposite polarity are placed in the position where you would typically find the neck pickup. These two magnets are placed just outside the strings, creating a very strong magnetic field across the strings. Like other sustainer systems, such as the Fernandes Sustainer, the neck position is used since it is easier to stimulate vibration in the middle of the string, than at the bridge.

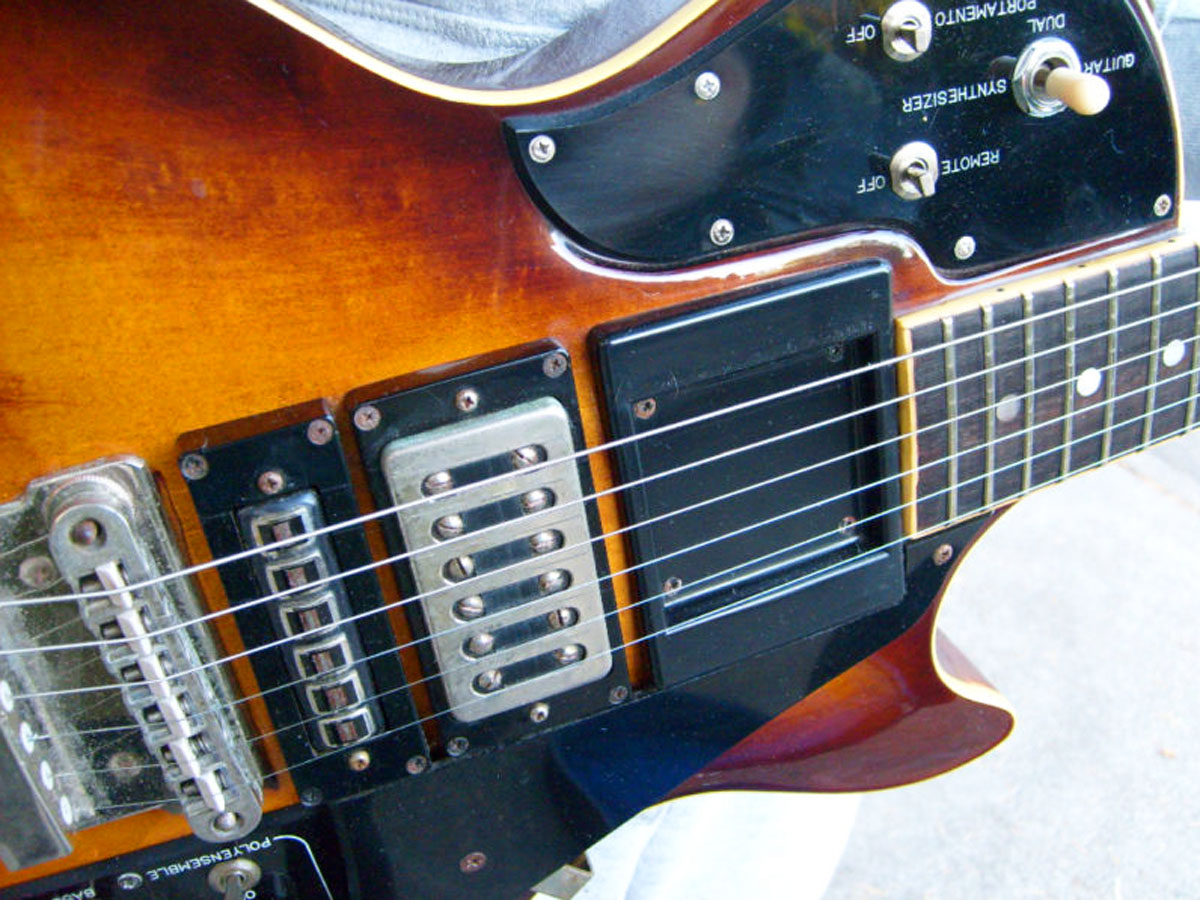

Magnetic assembly in the "neck" pickup position. Click to enlarge.

The individual outputs of the hexaphonic synth pickup are greatly amplified by a circuit in the GS-500, and sent to the unique GS-500 tail piece with conductors for each string. The frets in the GS-500 are grounded. There is a ground wire that runs underneath the fretboard. When you fret a note you now have a current flowing through a metal wire in a strong magnetic field. According to Fleming's law, this will cause the wire to move in the magnetic field.

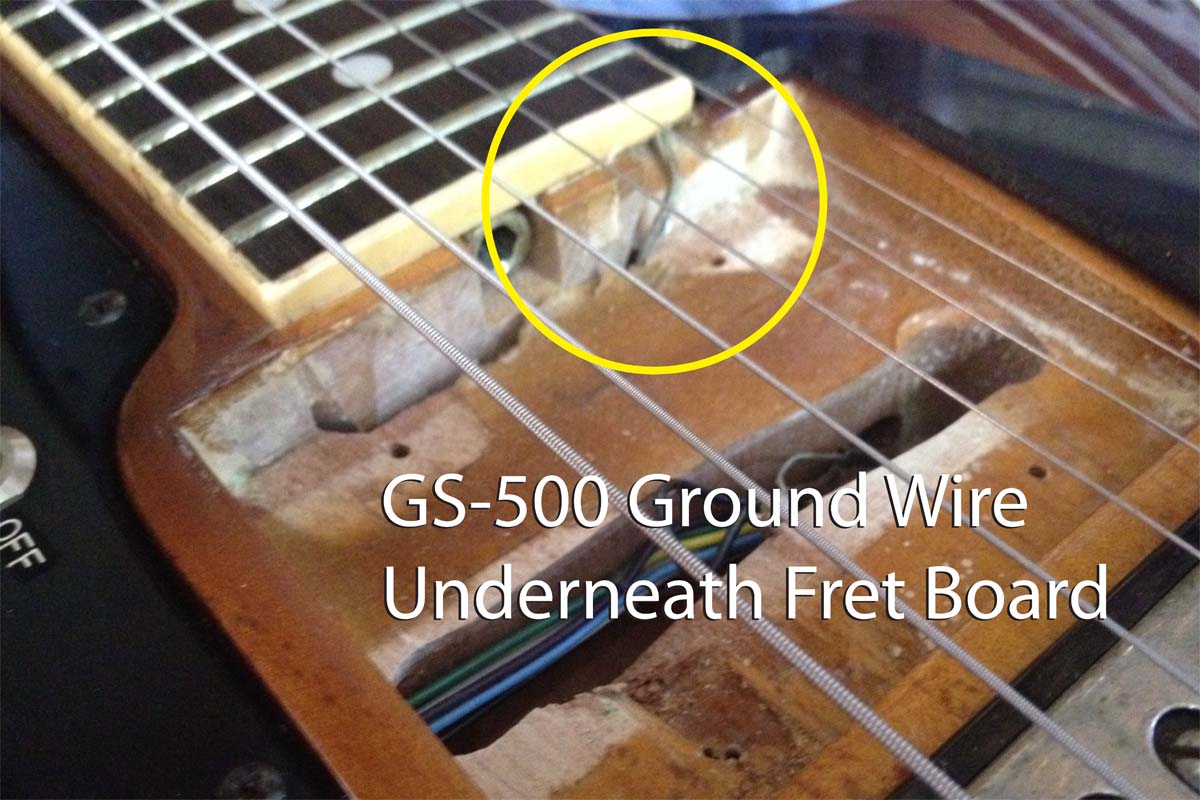

Ground wire for GS-500. Click to enlarge.

This creates a feedback loop: the vibration is picked up by the hexaphonic pickup, then amplified, and the string is stimulated to continue to vibrate at the same frequency.

This process also means that open strings cannot be sustained, only fretted strings.

Plastic Rings in the Tail piece, Plastic Saddles in the Bridge

Plastic saddles in the GS-500 bridge. Click to enlarge.

The GS-500 makes extensive use of insulating plastic parts in the bridge and tail piece to electrically isolate each string. There are small plastic rings in the tail piece, and the bridge in the GS-500 uses plastic saddles, similar to the plastic saddles used in some vintage Gibson guitars.

I would like to thank Christian Deschamps and Carlos Najar for their insights regarding the plastic saddles, and thanks to Patrick Phelps for the detailed GS-500 sustainer photos!

Improving the Response of the Sustainer:

GR-500 user Christian Deschamps has come upon what appears to be a simple, practical way to improve the function of the sustainer in the GS-500 guitar controller: keep your frets clean! The sustainer requires current to flow from the frets through strings to operate, and after cleaning his frets, Christian reported the sustainer worked substantially better.

Sustainer Explained Video

Photos: RARE Factory Blue GS-500, found in Tokyo, Japan

About this Rare Factory Blue Roland GS-500:

By chance I came across this incredibly rare, factory blue Roland GS-500 while visiting one of the many excellent music stores in Tokyo, Japan, in November of 2016.

The price tag was ¥248,000, or around $2,500. Probably a reasonable price for a factory Roland Blue GS-500, and GR-500.

I noted that the GR-500 was a later version, with the Solo Section Tuning Offset and the locking frame (positive type) 24-pin connector.

A staff member chatted with me about the GS-500 guitar and GR-500 synth. He was not sure of its origin, and not aware of how unusual the blue finish is.

This is not the first appearance of a blue, Roland GS-500. There is a picture of Jeff Baxter holding a blue GS-500 in the book "I Believe in Music", written by Ikutaro Kakehashii, the founder of Roland Corporation. Who knows, perhaps this is the same guitar.

Click on the photo of Jeff to view the original photo with the caption: "Jeff Baxter of the Doobie Brothers; longtime friend of Roland and premier demonstrator of the GR500 guitar synthesizer.".

GR-500 / GS-500 Televison Advertisement

Photos:

Click on any image for larger view.

GS-500 Videos:

Audio:

Listen to "Arctic Circles" a short GR-500 demo by Chuck Hammer using the sustain system.

Modifications: Using the GS-500 with the GR-700

The GS-500 guitar synthesizer controller shares the same basic circuit configuration as the later vintage Roland 24-pin controllers such as the G-202/303/505/707 or G-808. A few simple modifications can make the GS-500 capable of playing the GR-700.

A quick look at the 24-pin chart shows the major problem is the lack of synthesizer volume control, pin #9. Pin #9 is used by the G-202/303, etc. while absent in the GS-500. Without receiving a control voltage on pin #9, the GR-700 will appear to work, while producing no sound at all! Depending on your ambition and level of soldering skills, there are a few ways to modify the GS-500.

First, thanks to Danny Rowlandson for the help with the pdf wiring diagrams and his willing experimentation. Danny and I exchanged emails in 2011 when he first came upon this configuration of using a GS-500 to play a GR-700. Danny also came up with the idea of adding a 7805 to power the infinite sustain system (more on this below!).

1) Quick Fix: Synth Volume Output. The quickest fix is to wire a 1K resistor from pin #1 (+15 volt power) to pin #9 (synth volume), plus a 50K resistor from pin #3 (ground) to pin #9 (synth volume) inside the GS-500. With this change, you can plug the GS-500 into a GR-700, etc. and get sound. Unfortunately, you will not be able to change the volume level, but you will get sound!

The next step is to wire a 150 ohm resistor from pin #1 (+15 volt power) to pin #8 (master volume). By making this change, you can use the controls on the GS-500 to vary synthesizer parameters, such as filter cutoff, etc.

This chart shows how the controls on the GS-500 map to the more contemporary controls with the Quick Fix:

2) Full GS-500 Modification for Driving GR-700: If you are confident in your soldering skills, and feeling ambitious, you can go further with the modifications to the GS-500. Please check out the pdf linked below. In this modification, a 7805 voltage regulator is added to the GS-500 guitar to generate the +5 volt power supply needed to drive the infinite sustain circuit. The controls on the guitar are slightly reassigned to produce both a master volume, and synthesizer volume command, plus more.

Finally, this full modification changes the function of the Portamento and Remote switch on the guitar to support the GR-100/300/700 mode switch, and provides an on/off switch for the infinite sustain.

This chart shows how the controls on the GS-500 with the full modification map to the more contemporary controls:

What about the GR-100 and GR-300?

You can basically follow the full modification to get full functionality with the GR-100/GR-300, but I recommend waiting before installing the 7805 voltage regulator if using the GR-100 or GR-300. This is because the GR-100 and GR-300 have a smaller power supply, and powering the infinite sustain may draw more current than the GR-100 or GR-300 can supply.
